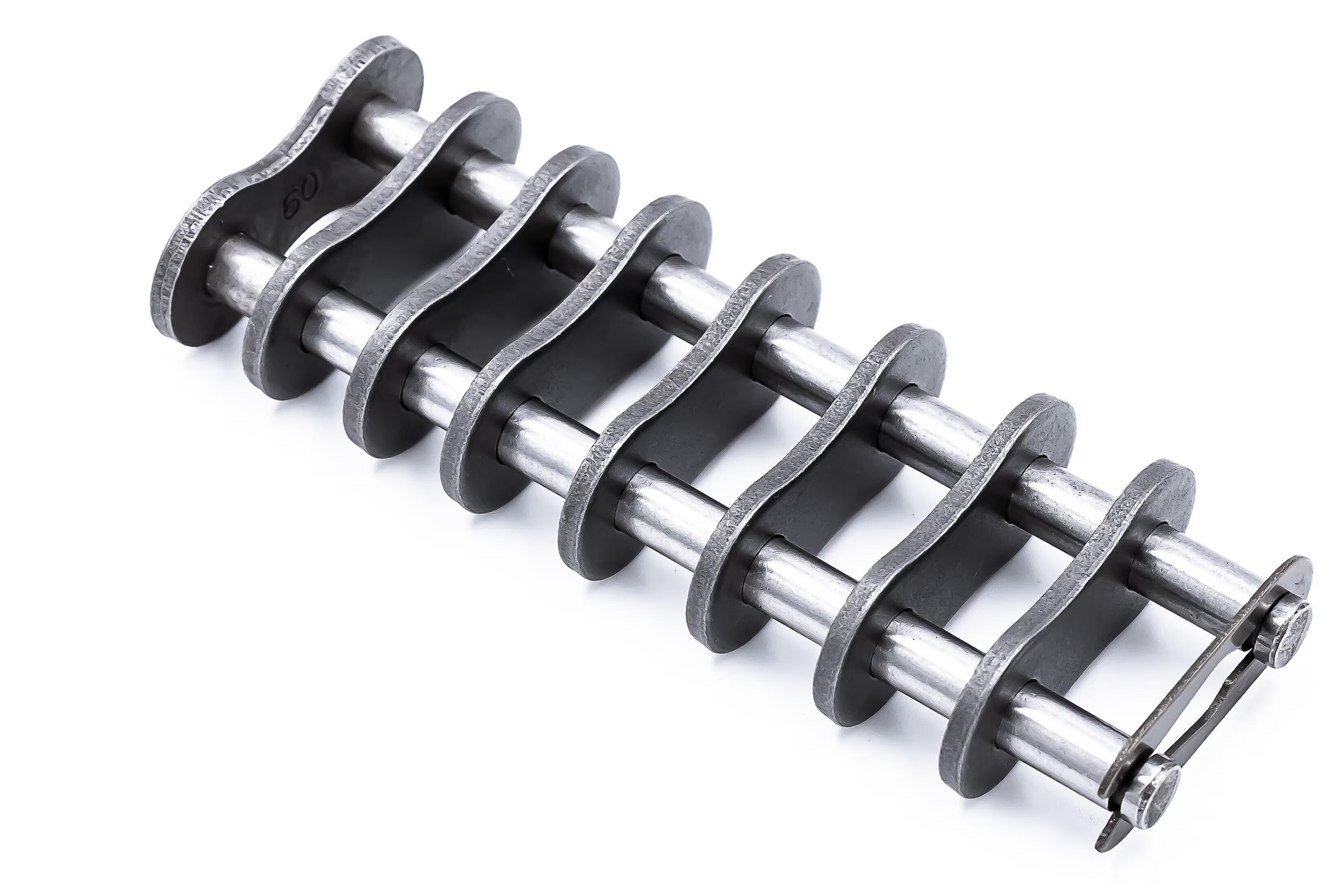

50-4 CONN LINK EACH PACK
Technical Information
| Chain No. | Pitch | Roller | Plate | Pin Diameter | Overall Width | Average Ultimate Tensile Strength (lbs) | Max Working Load (lbs) | Avg Weight per foot (lbs) | Transverse Pitch | |||
| Width | Dia. | Height | Thickness | |||||||||
| P | W | R | H | T | D | F | G | |||||
| 50 | 0.625 | 0.375 | 0.4 | 0.594 | 0.08 | 0.2 | 1.483 | 1.566 | 28440 | 4630 | 0.115 | 0.713 |
Details
PEER 50 Carbon Steel Roller Chain is manufactured under rigid quality control, from raw material to finished products, providing high accuracy, strength, and greater durability. Accurately controlling heat treatment of chain components provides uniform quality and performance.
