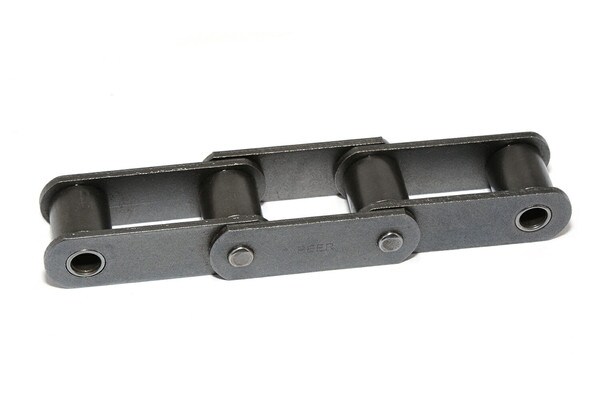

CA627 RIV X 10 FT
Technical Information
Technical Information

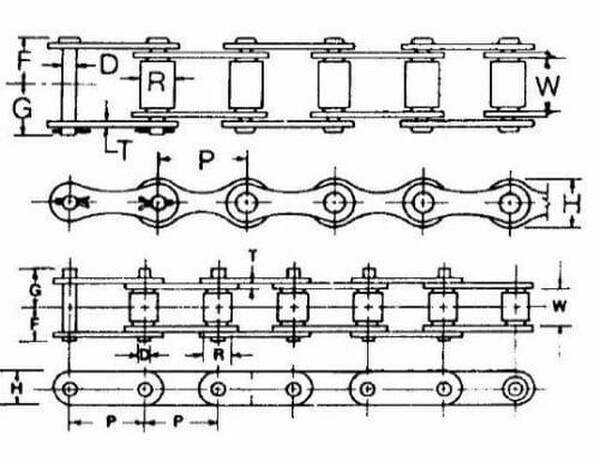

| Chain No. | Pitch | Roller | Plate | Pin Diameter | Overall Width | Average Ultimate Tensile Strength (lbs) | Avg Weight per foot (lbs) | |||
| Width | Dia. | Height | Thickness | |||||||
| P | W | R | H | T | D | F | G | |||
| CA627 | 1.181 | 0.748 | 0.625 | 0.813 | 0.118 | 0.326 | 0.713 | 0.831 | 12250 | 1.68 |
