CA555 RIV X 10 FT

Technical Information

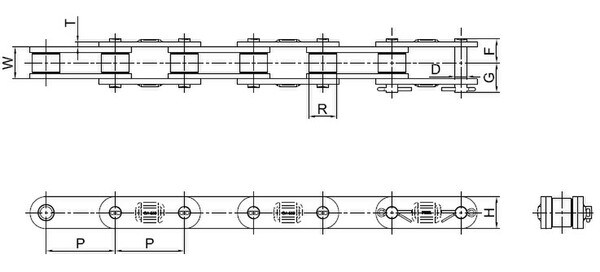

Chain No.	Pitch	Roller		Plate		Pin Diameter	Overall Width		Average Ultimate Tensile Strength (lbs)	Avg Weight per FT (lbs)
	Pitch	Width	Dia.	Height	Thickness	Pin Diameter	Overall Width
	P	W	R	H	T	D	F	G
CA555	1.630	0.5	0.656	0.757	0.125	0.281	0.586	0.631	12500	1.23

Features & Benefits

All PEER roller chain incorporates solid rollers enhancing rotation on the bushing while reducing impact loads on the sprocket tooth during operation.

All chain components are heat treated to achieve maximum strength and greater wear resistance.

All PEER roller chain is pre-loaded during the manufacturing process to minimize initial elongation.

Hot dipped lubrication ensures 100% lubrication of all chain components to extend wear life and reduce maintenance costs.
