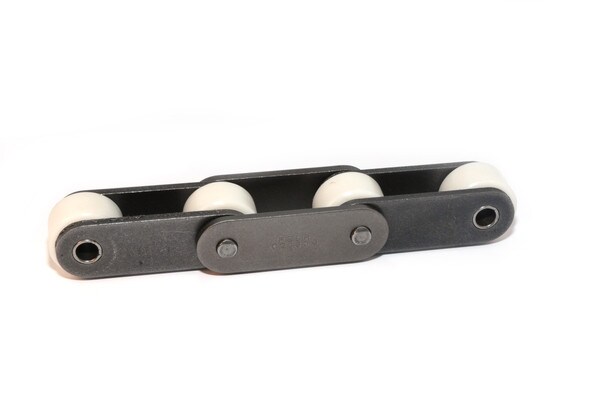

C2062 HEAVY RIV X 10 FT DELRIN ROLLERS
Technical Information
Technical Information
| Chain No. | Pitch | Roller | Plate | Pin Diameter | Overall Width | Average Ultimate Tensile Strength (lbs) | Max Working Load (lbs) | Avg Weight per foot (lbs) | |||
| Width | Dia. | Height | Thickness | ||||||||
| P | W | R | H | T | D | F | G | ||||
| C2062 | 1.5 | 0.5 | 0.875 | 0.712 | 0.125 | 0.235 | 0.567 | 0.606 | 12125 | 1433 | 1.48 |
