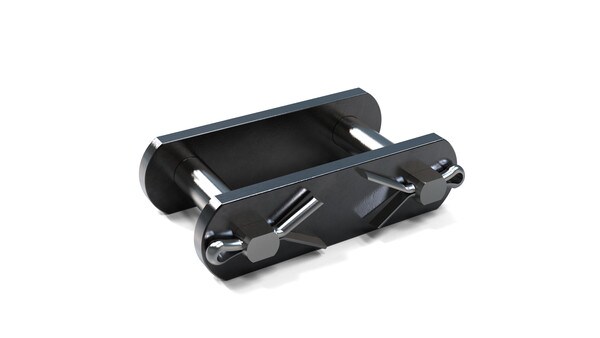

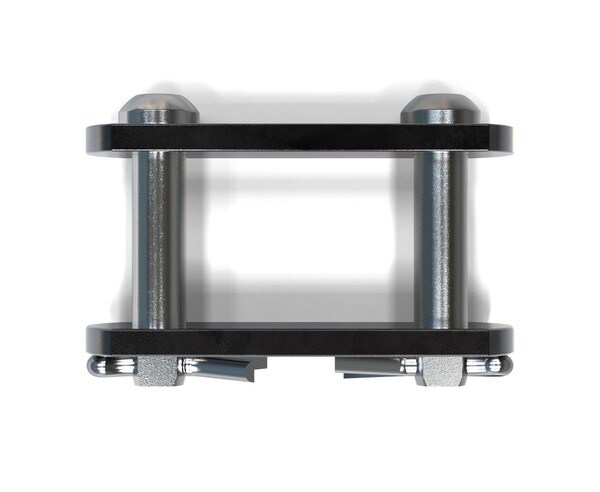

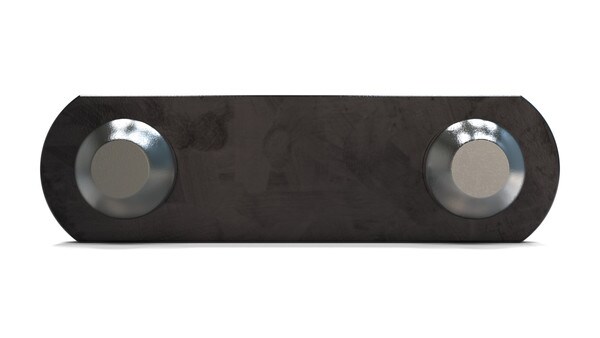

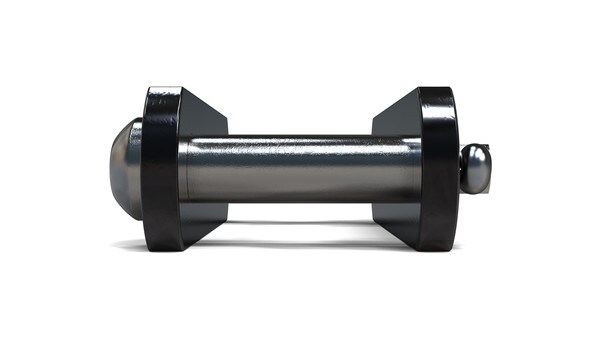

C188 COTTER CONNECTING LINK
Technical Information
Technical Information

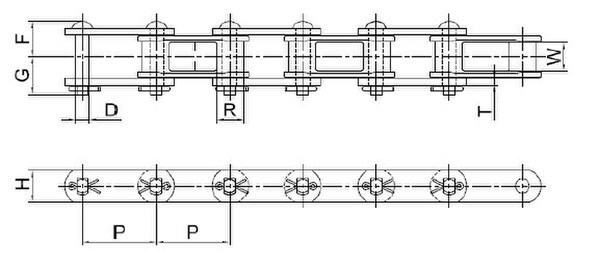

| Chain No. | Pitch | Roller | Plate | Pin Diameter | Overall Width | Average Ultimate Tensile Strength (lbs) | Max Working Load (lbs) | Avg Weight per foot (lbs) | |||
| Width | Dia. | Height | Thickness | ||||||||
| P | W | R | H | T | D | F | G | ||||
| C188 | 2.609 | 0.937 | 0.88 | 1.125 | 0.25 | 0.5 | 1.25 | 1.44 | 14000 | 2350 | 0.86 |
