240-2 PROCOAT RIV X 10 FT
Technical Information
Technical Information

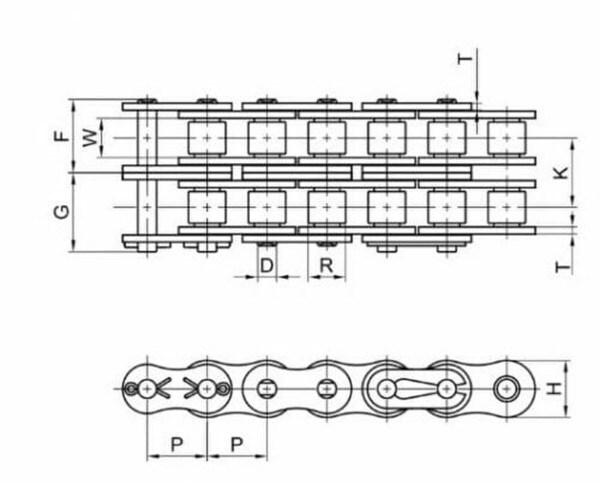

| Chain No. | Pitch | Roller | Plate | Pin Diameter | Overall Width | Average Ultimate Tensile Strength (lbs) | Max Working Load (lbs) | Avg Weight per foot (lbs) | Transverse Pitch | |||
| Width | Dia. | Height | Thickness | |||||||||
| P | W | R | H | T | D | F | G | |||||
| 240 | 3.00 | 1.875 | 1.875 | 2.85 | 0.375 | 0.937 | 3.673 | 3.906 | 308647 | 50706 | 32.78 | 3.458 |
