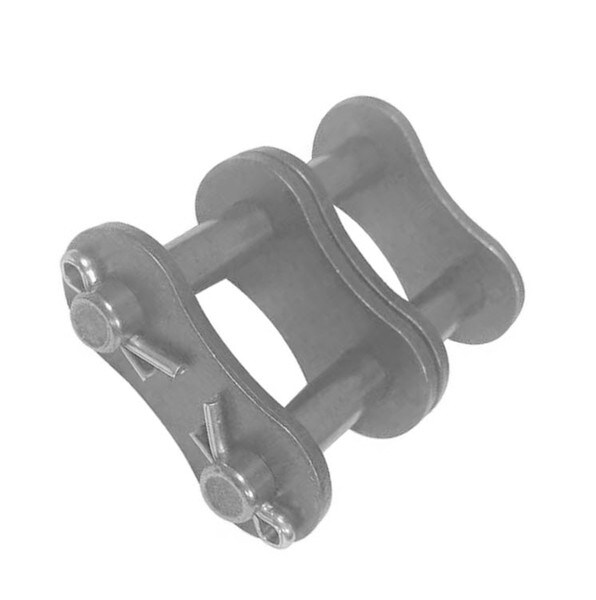

140-2 HEAVY COTTER CONNECTING LINK
Technical Information
Technical Information
| Chain No. | Pitch | Roller | Plate | Pin Diameter | Overall Width | Average Ultimate Tensile Strength (lbs) | Max Working Load (lbs) | Avg Weight per foot (lbs) | Transverse Pitch | |||
| Width | Dia. | Height | Thickness | |||||||||
| P | W | R | H | T | D | F | G | |||||
| 140 | 1.75 | 1 | 1 | 1.662 | 0.25 | 0.5 | 2.172 | 2.369 | 109790 | 16215 | 1.39 | 2.055 |
