120-2 NICKEL PLATED RIV X 10 FT
Technical Information
Technical Information

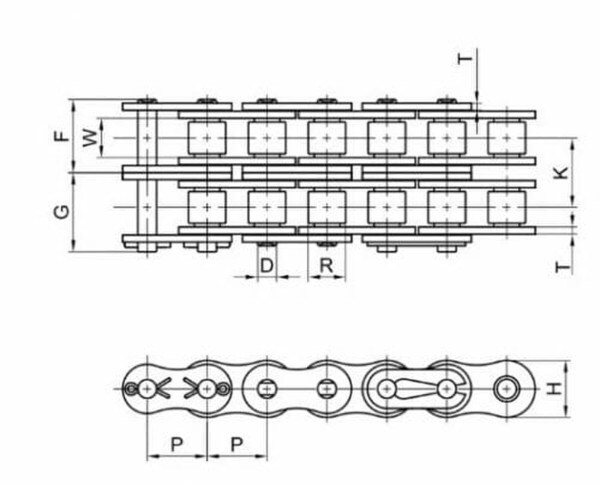

| Chain No. | Pitch | Roller | Plate | Pin Diameter | Overall Width | Average Ultimate Tensile Strength (lbs) | Avg Weight per foot (lbs) | Transverse Pitch | |||
| Width | Dia. | Height | Thickness | ||||||||
| P | W | R | H | T | D | F | G | ||||
| 120 | 1.500 | 1 | 0.875 | 1.425 | 0.187 | 0.437 | 1.895 | 2.06 | 68784 | 7.5 | 1.789 |
