  • 05B PROCOAT RIV X 100 FT

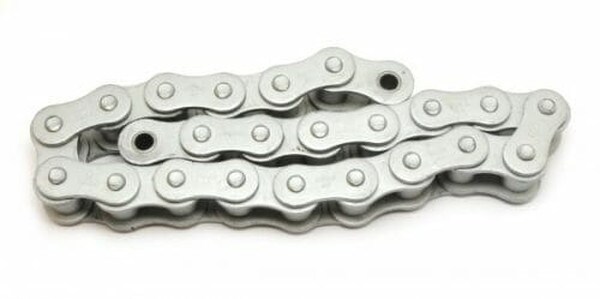

05B PROCOAT RIV X 100 FT

SKU: 05BRPRO X 100 FT : 6876
MSRP: $8.56
Available: Out of Stock

Technical Information

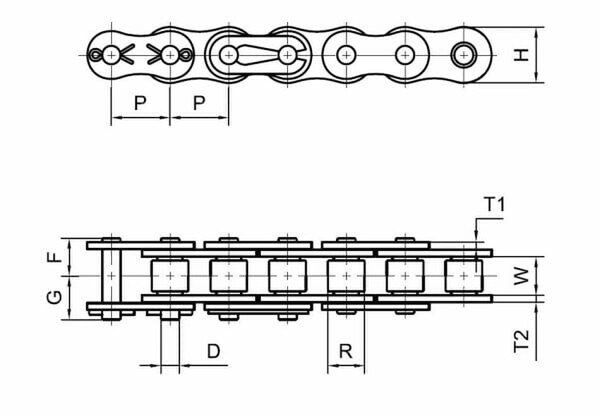

Chain No. Pitch Roller Plate Pin Diameter Overall Width Average Ultimate Tensile Strength (lbs) Max Working Load (lbs) Avg Weight per foot (lbs) Plate Thickness (T2 RL)
Width Dia. Height Thickness
P W R H T D F G
05B 0.315 0.118 0.197 0.28 0.031 0.091 0.154 0.185 1279 243 0.11 0.031

Featured Description

PEER Chain’s standard single strand 05B ProCoat Roller Chain are built to keep you running! We have size 05B ProCoat Roller Chain you need in stock & ready to ship.

Details

PEER 05B ProCoat Roller Chain is manufactured under rigid quality control, from raw material to finished products, providing high accuracy, strength, and greater durability. Accurately controlling heat treatment of chain components provides uniform quality and performance.

Store Description

On July 9th, 1969, a family of passionate individuals decided to bring together their expertise and commitment to superior customer service to form a new business: PEER Chain. Since that time, our family has grown significantly, and we now offer thousands of chains and sprockets with the same customer-focused attention that has helped us grow our business for the past 50 years. Our 05B ProCoat Roller Chain is one of the most popular 05B ProCoat Roller Chain used in the industry. We stand behind our quality, and our goal is to provide you the best in service. PEER 05B ProCoat Roller Chain is manufactured to strict adherence with ANSI/ASME standard. Here are some of the ways # 05B ProCoat Roller Chain is used.

Features & Benefits

  • Provides excellent corrosion resistance and commonly used in applications with high humidity, outdoor environments, saltwater applications.
  • Stronger, more impact-resistant than Stainless Steel.
  • ProCoat offers the durability and load-bearing features of Carbon Steel.
  • All PEER roller chains incorporate solid rollers enhancing rotation on the bushing while reducing impact loads on the sprocket tooth during operation.
  • All chain components are heat treated to achieve maximum strength and greater wear resistance.
  • All PEER roller chain is pre-loaded during the manufacturing process to minimize initial elongation.
  • Optional PEER Quest chain employs solid, one-piece cold formed bushings which improves wear resistance and provides superior defiance to elongation.
  • Not intended in environments where chain comes in contact with food.
